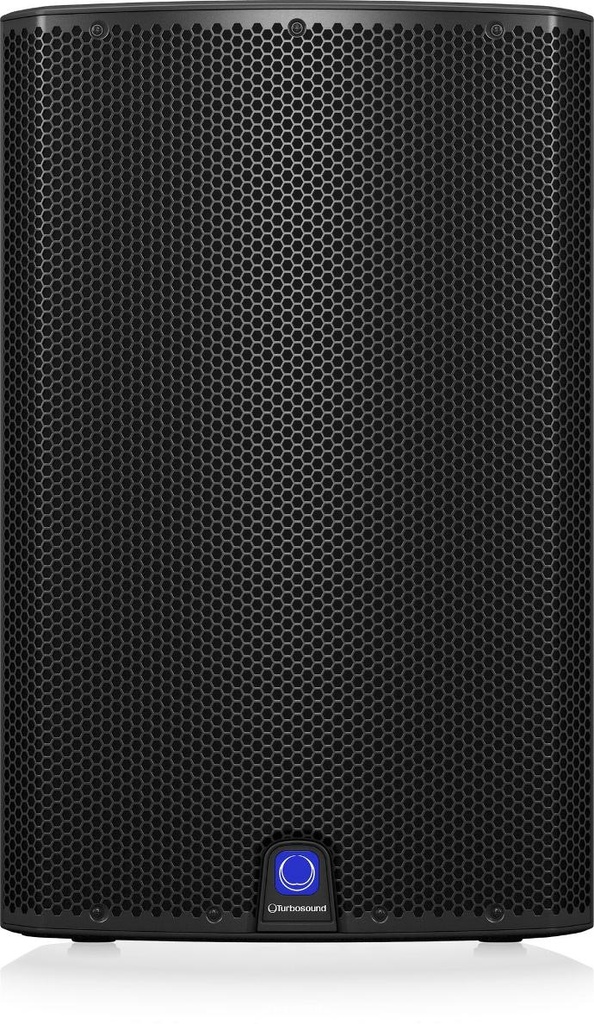

Turbosound - iQ15 2500 Watt 2 Way 15" Powered Loudspeaker

https://www.mdrlighting.co.nz/web/image/product.template/51448/image_1920?unique=b325609

TURBOSOUND-IQ15

1,912.17 1912.17 NZD 1,912.17 GST Excluded

1,912.17 GST Excluded

Software Download

    This combination does not exist.


    The 2,500-Watt iQ15 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 15" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.


    FEATURES
    • 2 way full range loudspeaker for portable PA and installation applications

    • 2,500 Watt power featuring Klark Teknik Class-D technology

    • Klark Teknik Digital Signal Processing for total system control

    • Speaker modelling includes accurate models of industry standard speakers

    • SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement

    • ULTRANET digital audio networking connects to mixers and other sources

    • 15" low frequency driver with low mass voice coil for improved transient response

    • High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction

    • Fully featured user interface with LCD display for ease of navigation

    • PC remote control software downloadable at turbosound.com

    • Lightweight fibre glass reinforced composite enclosure

    • Rugged powder coated perforated steel mesh grille

    • Dual angle pole mount for accurate audience coverage

    • Multiple internal rigging points for installation applications

    • Mains input and link output on Neutrik powerCON connectors


    SPECIFICATIONS
    Frequency response

    50 Hz – 18 kHz ±3 Db
    42 Hz – 20 kHz -10 dB

    Nominal dispersion

    75° H x 55° V @ -6 dB points

    Maximum SPL

    132 dB peak

    Crossover type

    Active

    Transducers

    1 x 15" (387 mm) LF driver
    1 x 1" (25.4 mm) HF compression driver

    Limiter

    Independent HF, LF, peak and rms

    Amplifier
    Maximum output power*

    2,500 W

    Type

    Class-D

    Protection

    Short circuit, open circuit, thermal

    Connectors
    Input A / B

    2 x combo jack/XLR

    Sensitivity

    Line +4 dBu, mic -22 dBu, switchable

    Input impedance

    20 kO unbalanced, 40 kO balanced

    Maximum input level

    +21 dBu

    Output A / B

    2 x XLR Linked to input

    Mix output

    XLR, balanced

    Output impedance

    100 O unbalanced, 200 O balanced

    Ultranet input/link

    2 x RJ45

    Mains Supply

    Neutrik powerCON input 20A and link 15A

    Controls
    DSP

    2 x gain controls (channels A and B)
    2 x Line/Mic switch

    Mixer section

    2 x gain controls (channels A and B)
    2 x Line/Mic switch

    User DSP Functions
    Factory EQ presets

    Positioning, Sound mode, Sound modeling, FBQ

    Display

    LCD 128 x 32, blue backlit

    Delay

    0 - 300 ms

    Equalisation

    High and low shelving EQ
    2 x parametric EQ

    Limiter

    Zero attack input limiter

    Presets

    20 total presets, 19 user-definable

    Crossover

    High Pass L-R 24 dB/oct

    Protection

    Lock-out function for all settings

    Ultranet Digital Network
    System
    Cabling
    Power Supply
    Power consumption

    150 W @ 1/8 max power

    Voltage (fuses)
    Enclosure
    Dimensions HWD

    711 x 450 x 381 mm (27.9 x 17.7 x 15.0")

    Net weight

    26.1 kg (57 lbs)

    Construction

    Injection-moulded polypropylene enclosure

    Finish

    Black painted

    Grille

    Powder coated perforated steel

    Flying hardware

    M10 x 3 points

    Accessories

    IQ15-WB Steel wall bracket
