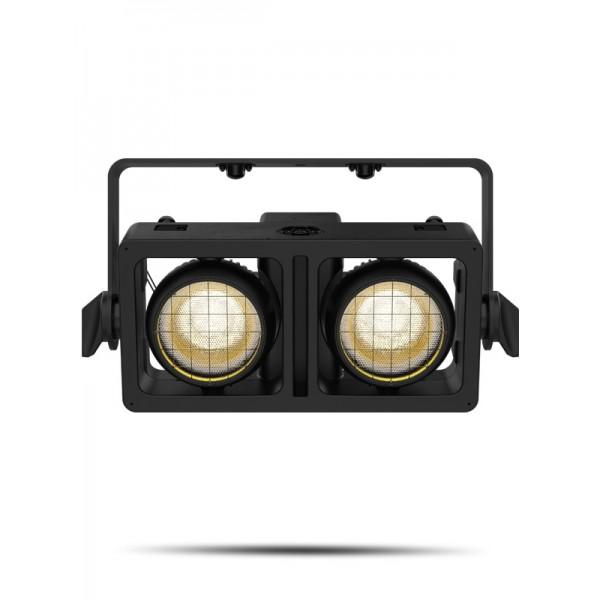

CHAUVET Strike Array 2 - 2 x 100W led blinder IP65, with red shift

https://www.mdrlighting.co.nz/web/image/product.template/3960/image_1920?unique=61c9207

STRIKEARRAY2

1,595.25 1595.25 NZD 1,595.25 GST Excluded

1,595.25 GST Excluded

Software Download

    This combination does not exist.

    STRIKE Array 2 is an outdoor-ready audience blinder powered by two intense 100 W warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 2 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder to give you a streamlined truss mounting process.

    FEATURES

    • Intense 2 pod blinder/strobe rated IP65 for all-weather use
    • Emulated “red shift” to mimic incandescent fixtures perfectly.
    • Individual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.
    • Innovative interlocking system to connect multiple Strike Array 2s and Strike Array 4s together.
    • Multiple mounting locations with ¼ turn adaptors for creative and convenient rigging options
    • 16-bit dimming control for smooth, perfect fades
    • Strobe functionality for high-impact effects on the fly
    • Easy to use OLED display
    • Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility

    SPECIFICATIONS

    OPTICAL

    • Light Source: 96 LED (WW) 1.33 W, (.852 A), 2700 K, 50,000 hours life expectancy
    • Light Source: 10 LED (Amber) 1.92 W, (.654 A), 50,000 hours life expectancy
    • Color Temperature (at full): 2792 K
    • CRI: 92.9
    • TLCI: 91
    • Beam Angle: 60.3°
    • Field Angle: 99°
    • Illuminance (total): 360 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

    DYNAMIC EFFECTS

    • Dimmer: Electronic
    • Strobe Rate: 0 to 25 Hz
    • Dim Modes: 4
    • Built-in Automated Programs: Yes

    CONSTRUCTION / PHYSICAL

    • Dimensions: 18.5 x 10.4 x 6.3 in (469 x 264.5 x 161 mm)
    • Dimensions (shipping size): 20.7 x 8.5 x 12.8 in (525 x 215 x 325 mm)
    • Weight: 17.6 lb (8 kg)
    • Weight (shipping weight): 21.6 lb (9.8 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum die-cast

    CONNECTIONS

    • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Power Output: Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP65 XLR
    • Cable Length (power): 5 ft (1.5 m)

    CONTROL

    • Control Protocol: DMX, RDM
    • DMX Channels: 1, 2, 3, 4, 5, or 8

    ELECTRICAL

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 11 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V;25 units @ 240 V
    • Power and Current: 124 W, 1.24 A @ 100 V, 60 Hz [3.1 A inrush]
    • Power and Current: 123 W, 1.04 A @ 120 V, 60 Hz [1.8 A inrush]
    • Power and Current: 127 W, 0.61 A @ 208 V, 60 Hz [1.9 A inrush]
    • Power and Current: 129 W, 0.56 A @ 230 V, 50 Hz [3.8 A inrush]
    • Power and Current: 130 W, 0.54 A @ 240 V, 50 Hz [1.2 A inrush]
    • Power and Current (resting): 3 W, .021 A @ 100 V, 60 Hz
    • Power and Current (resting): 4 W, .029 A @ 120 V, 60 Hz
    • Power and Current (resting): 7 W, .040 A @ 208 V, 60 Hz
    • Power and Current (resting): 9 W, .040 A @ 230 V, 50 Hz
    • Power and Current (resting): 10 W, .044 A @ 240 V, 50 Hz

    CERTIFICATIONS / QUALIFICATIONS

    • CE, MET
    • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    WHAT'S INCLUDED

    • Strike Array 2
    • Seetronic Powerkon IP65
    • Omega bracket with mounting hardware
    • Warranty Card
    • Quick Reference Guide or User Manual
