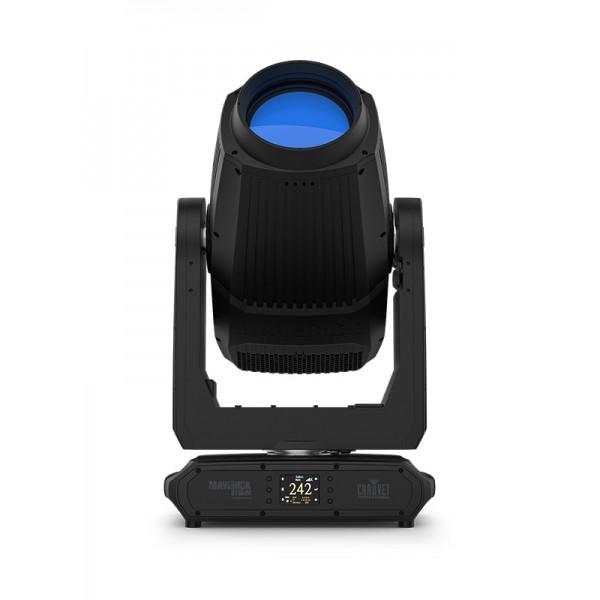

CHAUVET Maverick STORM 4 Profile, IP65 rated moving profile, 1250W led source

Maverick Storm 4 Profile brings indomitable long throw performance to even the largest venues. Its ambitious design launches over 60,000 lumens across incredible distances with commanding brightness. Built to outshine, this Maverick brings more to your show than its long throw. Master the art of domination with a sophisticated variable CMY+CTO system that delivers fantastic color rendering. Double down on crisp gobos to create complex looks with two rotating gobo wheels, two prisms, two frost filters, and an animation wheel to add even more texture. Sharp shutter framing, smooth iris and 8.5:1 zoom complete a Maverick that delivers key light and high energy kinetic effects, in an advanced IP65 alloy body that carries SunShield tech inside to protect optical components from any solar ingress through its audacious 188mm front lens.

FEATURES

• Fully featured, compact and lightweight IP65 1,250 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 8.5:1 zoom, 2 prisms (5 facet round and linear, 2 rotating gobo wheels, integrated sun shield

• 16-bit dimming of master dimmer for smooth control of fades

• Variable CMY + CTO color mixing system to create a wide pallet of colors

• CRI and CTB filters on color wheel for added flexibility

• Two rotating, indexing and interchangeable slot and lock gobo wheels

• An animation wheel for kinetic textured effects

• DMX, WDMX, sACN, and Art-Net for full flexibility of control options

• RDM control over DMX for fixture reporting

• 6.4° to 58.3° zoom range for variable beam sizes

• Iris, 5-facet round and linear prisms and 2 frosts (light and medium) for beam control

• True 1 compatible power input

• Integrated sun shield for protecting the optical path from sunlight when the fixture is off

• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

• USB slot for software uploads

• Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

• Light Source: 1 LEDs (CW) 1250 W, (4 A), 7500 K, 50,000 hours life expectancy
• Color Temperature (at full): 6895 K
• CRI: 71.5
• CRI with CRI Filter: 91
• Front Lens Diameter: 188 mm
• Beam Angle: 6.2° to 48.7°
• Field Angle: 8.4° to 54.1°
• Cutoff Angle 8.8° to 58.3°
• Zoom Range: 6.4° to 58.3°
• Lumens – Source: 94,000
• Lumens – Output: 60,756
• Illuminance (6.2°) 127,159lux @ 5 m
• Illuminance (58.3°) 4,019lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag
• Gobos (1): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (rotating): 30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
• Framing Shutter rotation: +/- 60° rotation.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Linear Facets, motorized, rotating
• Prism: 5 Circular Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 18.3 x 11.93 x 32.91 in (465 x 303 x 836 mm)
• Weight: 102.5 lb (46.5kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

CONNECTIONS

• Power Connection: Seetronic Powerkon IP65
• Power Input/Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 38 or 55
• Art-Net Channels: 38 or 55
• Modes/Personalities: 2 personalities (38, 55)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 1780 W, 15.07 A @ 120 V, 60 Hz
• Power and Current: 1740 W, 8.70 A @ 208 V, 60 Hz
• Power and Current: 1760 W, 7.79 A @ 230 V, 50 Hz
• Breaker Size: 25 A, 750 V

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, CB, UKCA
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Noise Level (ambient): 36.5 dB level @ 1 m
• Noise Level (ECO): 45.8 dB level @ 1 m
• Noise Level (auto): 50.1 dB level @ 1 m
• Noise Level (FULL): 57.7 dB level @ 1 m
• Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Maverick Storm 4 Profile
• Seetronic Powerkon IP65 power cord to Bare end
• (2) 140-D Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

• Professional Clamps : CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• IP Rated Seetronic® Powerkon Extensions
• UPLOAD 08 software uploader
• Micro T-1 TRX G65 WDMX Transceiver
• FLIGHT CASE TBA
