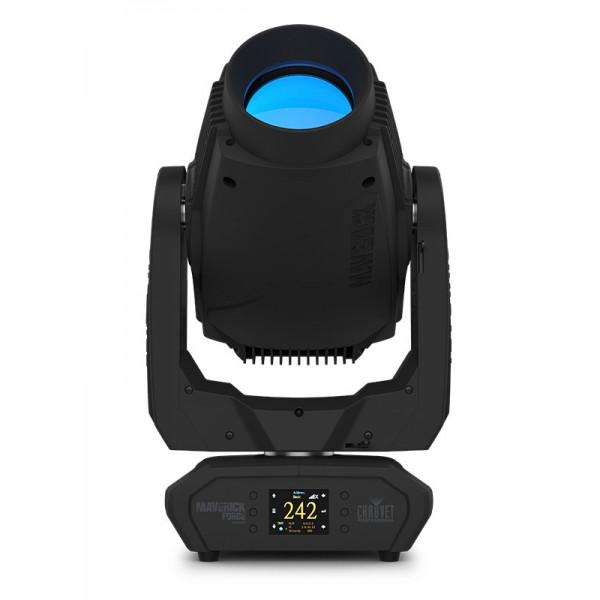

CHAUVET Maverick Force S Spot Moving head, 350W led, 4.1-43.1 deg zoom

https://www.mdrlighting.co.nz/web/image/product.template/45985/image_1920?unique=29e80b5

MAVERICKFORCESSPOT

7,292.28 7292.28 NZD 7,292.28 GST Excluded

7,292.28 GST Excluded

Software Download

    This combination does not exist.


    Maverick Force S Spot is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, and control options in a lightweight frame, well under 50 lbs. The compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color-mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S features a speedy effects engine that includes motorized iris, frost, focus, a 5-facet prism, and wide zoom ranging from 4° to 43°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

    FEATURES

    • Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
    • 16-bit dimming of master dimmer for smooth control of fades
    • Variable CMY color mixing system to create a wide pallet of colors
    • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
    • RDM Enabled for remote addressing and trouble shooting
    • 4.1° to 43.4° zoom range for variable beam sizes
    • Iris, 5-facet prism, and frost for beam control
    • True 1 compatible power input
    • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
    • USB slot for software uploads
    • Battery backup display with auto-rotate depending on fixture orientation



    SPECIFICATIONS

    OPTICAL

    • Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
    • Color Temperature (at full): 6858 K
    • CRI: 68.6
    • CRI with CRI filter: 89.6
    • Front Lens Diameter: 119 mm
    • Beam Angle: 4.1° to 36.5°
    • Field Angle: 5.1° to 40.4°
    • Cutoff Angle: 5.4° to 43.4°
    • Zoom Range: 4.1° to 43.4°
    • Lumens - Source: 20,000
    • Lumens – Output: 14,407
    • Illuminance (4.1°): 62,131 lux @ 5 m
    • Illuminance (43.1°): 1,745 lux @ 5 m
    • Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

    DYNAMIC EFFECTS

    • Pan and Tilt: 540°/270°
    • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
    • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
    • Colors: CMY Wheels
    • Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    • Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
    • Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Motorized
    • Focus: Motorized
    • Frost: Motorized
    • Iris: Motorized
    • Prism: 5 Facets, motorized, rotating
    • Strobe Rate: 0 to 20 Hz
    • Move-in-Black: Yes
    • Dim Curves: 4

    CONSTRUCTION / PHYSICAL

    • Dimensions: 14 x 8.8 x 25.0 in (360 x 224 x 636 mm)
    • Weight: 47.4 lb (21.5 kg)
    • Exterior Color: Black
    • Housing Material: High-impact flame-retardant polymer

    CONNECTIONS

    • Power Connection: Edison plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
    • Cable Length (power): 5 ft (1.5 m)

    CONTROL

    • Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
    • DMX Channels: 22 or 29
    • Art-Net Channels: 22 or 29
    • Modes/Personalities: 2 personalities (22, 29)

    ELECTRICAL

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V; 5 units @ 240 V
    • Power and Current: 554 W, 5.54 A @ 100 V, 60 Hz[6.0 A in-rush]
    • Power and Current: 542 W, 4.53 A @ 120 V, 60 Hz[7.0 A in-rush]
    • Power and Current: 522 W, 2.58 A @ 208 V, 60 Hz[15.0 A in-rush]
    • Power and Current: 521 W, 2.33 A @ 230 V, 50 Hz[15.0 A in-rush]
    • Power and Current: 521 W, 2.26 A @ 240 V, 50 Hz[15.0 A in-rush]
    • Power and Current (resting): 77 W, 0.904 A @ 100 V, 60 Hz
    • Power and Current (resting): 77 W, 0.701 A @ 120 V, 60 Hz
    • Power and Current (resting): 76 W, 0.418 A @ 208 V, 60 Hz
    • Power and Current (resting): 73 W, 0.375 A @ 230 V, 50 Hz
    • Power and Current (resting): 74 W, 0.368 A @ 240 V, 50 Hz

    CERTIFICATIONS / QUALIFICATIONS

    • CE, MET, FCC
    • IP Rating: IP20, dry location
    • Noise Level (ambient): 37.5 dB level @ 1 m
    • Noise Level (Static - Full): 40.9 dB level @ 1 m
    • Noise Level (Static - Eco): 37.9 dB level @ 1 m
    • Noise Level (Static - Auto): 38.4 dB level @ 1 m
    • Noise Level (Max): 45.5 dB level @ 1 m
    • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
    • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)

    WHAT'S INCLUDED

    • Maverick Force S Spot
    • Seetronic Powerkon IP65 power cord
    • 2 Omega brackets with mounting hardware
    • Quick Reference Guide

    OPTIONAL ACCESSORIES

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Safety Cable: SC-07
    • DMX cables
    • Ethercon extension cables
    • IP Rated Seetronic® Powerkon Extensions
    • Flight Case:
    • UPLOAD_08 software uploader
