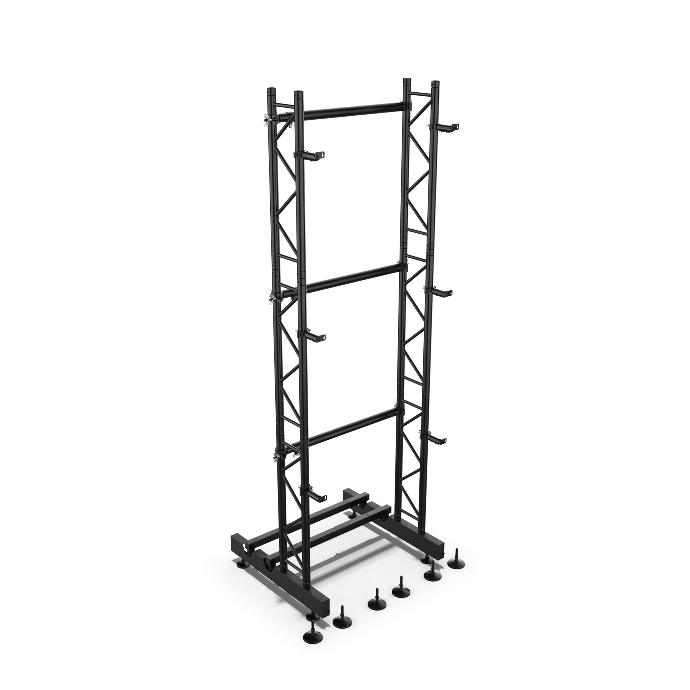

CHAUVET Video Wall Ground Support Kit

The Ground Support  is a proper and safe ground support/stacking system for professional video wall setups. It utilizes the new dual function rig bars to provide a clean, setup for your clients, and is capable of supporting up to 15 video panels of Vivid or F-series Panels. Ships in road case with internal dividers to aid in the fast setup of the system for production/rental events.

FEATURES

• Complete ground support solution for stacking video wall on the floor

• Works for walls between 4.92 ft (1.5 m) and 8.2 ft (2.5 m) wide and as high as 9.85 ft (3 m) tall; combine additional groundsupport to achieve wider walls

• Use multiple kits to stack wider video walls

• Support for flat and concave video walls, including 5° and 10° curves

• Designed to work with the F2, F3, F4IP, F5IP, and Vivid 4 video panels

• Ships in road case for easy setup and pack after the gig

• DRB-F100CM, DRB-F50CM dual function rig bars required for operation (not included with GROUNDSUPPORT)

SPECIFICATIONS

• IP Rating:IP20 (dry location)
• Weight:(total with case): 322 lb (146 kg)
  (ground support without case): 165 lb (74 kg
  (empty case): 157 lb (71 kg)
• Dimensions:10.24 x 3.28 x 3.28 ft (3.12 x 1 x 1 m)
• Housing Material: Aluminum extrusion and Steel
• Maximum vertical stack supported: 3 m tall
• Minimum width supported: 1.5 m wide
• Ballast needed per 1 M height stack: 100 lb (45 kg)
• Ballast needed per 2 M height stack: 175 lb (80 kg)
• Ballast needed per 3 M height stack: 250 lb (113.4 kg)

WHAT'S INCLUDED

• Warranty Card
• Quick Reference Guide
• 2PCS FLOOR BASE
• 2PCS ANGLING HORIZONTAL BAR
• 3PCS ANGLING 1M PIPE W/2PCS CLAMPS
• 6PCS 1M LADDER TRUSS W/SPIGOTS, PINS, AND SAFETY CLIPS
• 6PCS PANEL ATTACHMENT ARM
• 10PCS TR16 SCREW JACKS
• 12PCS M12 PANEL ATTACHMENT SCREWS
