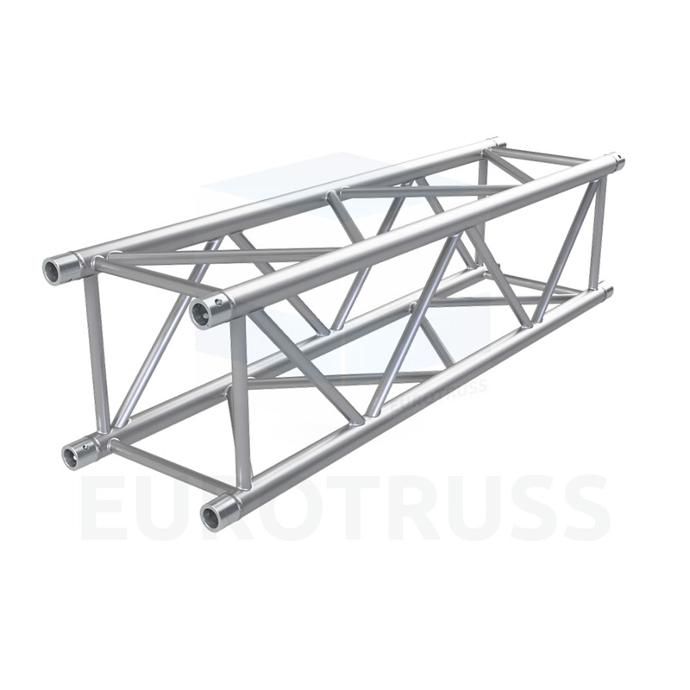

Eurotruss 400mm Heavy Duty Box Truss, 1M length

https://www.mdrlighting.co.nz/web/image/product.template/4741/image_1920?unique=918dd64

ET-HD44-100

823.70 823.7 NZD 823.70 GST Excluded

823.70 GST Excluded

Software Download

    This combination does not exist.


    HD44 with excellent load capacity on free spans of 18m (59 feet) or to be used as tower elements with an extra welded climbing brace on one side (TD44). HD44 is using the 3mm wall thickness in the maintube which assures durability and extra strength. Designed for high frequency usage or installations, which demands higher loading.

    Ideal trussing system for rental, touring and exhibition companies.

    Made with the fast connection system and approved  according the DIN EN 1999-1-1 & 1999-1-1/A2 (Eurocode 9).


    FEATURES
    • TüV approved
    • Also available in any non-standard length and shape
    • Tolerance free conical connector system
    • Wall thickness of 3 mm for 50 mm main tubes
    • HD44 is also available as a Tower Truss (TD44)


    SPECIFICATIONS
    • Height: 400 mm
    • Width: 400 mm
    • Main Tube: 50 x 3 mm
    • Braces: 25 x 2 mm
    • Weight: ~9,5 kg/m
    • Pin Position: Diagonal
    • Material: EN AW-6082 T6
    • Connection: CS1 – CON
