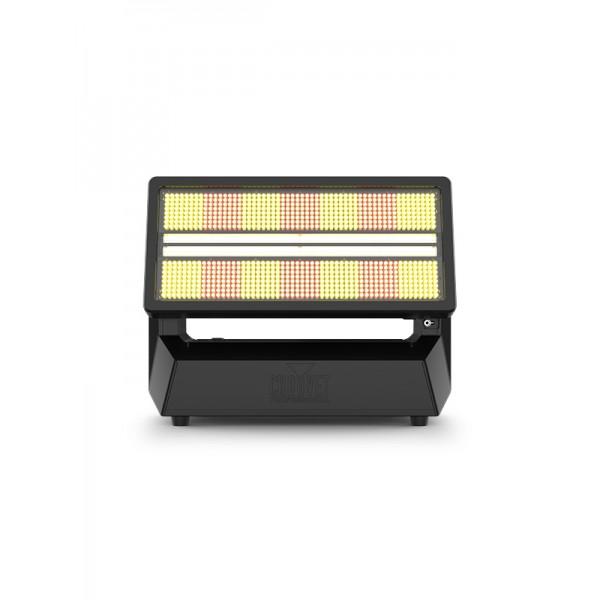

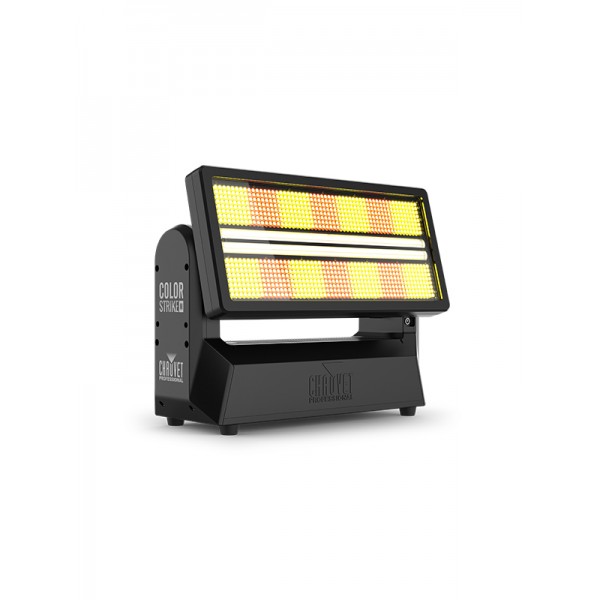

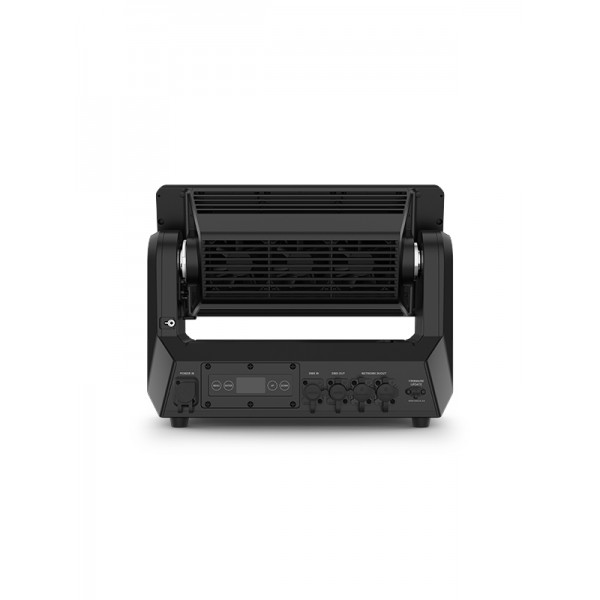

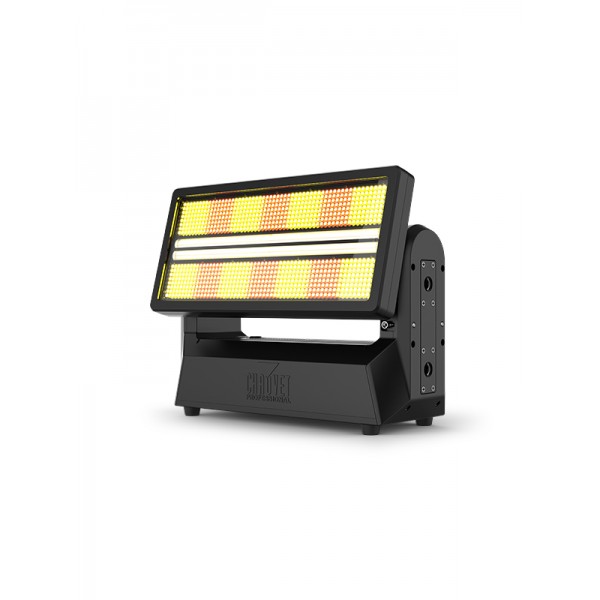

CHAUVET ColorStrike M, IP65 Panning led Strobe/Blinder/Wash

Color STRIKE M is an IP65 rated strobe/blinder with two ultra-bright, white light tube elements surrounded by an electrifying, color-mixing, and pixel-mappable face. This versatile strobe light can double as a wash fixture with 180° tilt range to throw bright saturated color wherever you need. The IP65 casing protects the fixture from any environmental factors or weather and has two omega-bracket attachments so you can mount the fixture horizontally or vertically without any hassle. Multiple programming personalities give you a varying amount of control from simple set ups with a multitude of built-in effects, or wider control options to take advantage of the pixel-mappable zones: 14 in the RGB face and 28 in the two tube elements. Built-in alignment pins insure perfectly straight linear arrays to create massive arrangements. DMX, Art-net, and sACN control. All LEDs feature 16-bit dimming for smooth fades and Pulse Width Modulation for on-camera use.

FEATURES

• High-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use.
• 14 controllable sections of RGB LEDs and 28 sections of control of the white strobe LEDs.
• Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations
• Multitude of built-in effect macros with control parameters
• DMX, ArtNet and sACN control capability
• 16-bit dimming control for smooth, perfect fades
• Easy to use OLED display
• Rugged design for years of rough use in the most extreme conditions.
• Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility
• USB port for fixture software updates
• Built-in alignment pins to insure perfectly straight linear arrays

SPECIFICATIONS

OPTICAL

• Light Source: 896 LEDs (tri-color) SMD 5050, 0.784 W, (252 mA), 50,000 hours life expectancy
• Light Source: 432 LEDs, (CW) 1.56 W, (696 mA), 5861K, 50,000 hours life expectancy
• Color Temperature (at full): 7757 K
• CRI: 90.3
• Beam Angle (Combine): 98° x 57°
• Beam Angle (Plate): 123°
• Beam Angle (Beam): 95° x 50°
• Field Angle (Combine): 146° x 122°
• Field Angle (Plate): 160°
• Field Angle (Beam): 138° x 100°
• Lumens (Combined): 71,620
• Lumens (Plate): 18,600
• Lumens (Beam): 54,381
• Illuminance (Combined): 1591 lux @ 5 m
• Illuminance (Plate): 231 lux @ 5 m
• Illuminance (Beam): 1432 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Tilt: 180°
• Tilt Ranges: 0° to 180°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 16.02 x 6.90 x 12.30 in (407 x 175.4 x 312.5 mm)
• Weight: 26.6 lb (12.1 kg)
• Exterior Color: Black
• Housing Material: Magnesium alloy

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, DMX, RDM, sACN
• DMX Channels: 8, 11, 13, 22, 74 or 89
• Art-Net Channels: 8, 11, 13, 22, 74 or 89
• Modes/Personalities: 6 personalities (8, 11, 13, 22, 74, 89)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 720 W, 7.14 A @ 100 V, 60 Hz
• Power and Current: 740 W, 6.36 A @ 120 V, 60 Hz
• Power and Current: 716 W, 2.35 A @ 208 V, 60 Hz
• Power and Current: 696 W, 3.27 A @ 230 V, 50 Hz
• Power and Current: 709 W, 3.02 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC,
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT'S INCLUDED

• Color STRIKE M
• Seetronic Powerkon IP65 power cord
• Omega bracket

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP Rated Seetronic® Powerkon Extensions
• IP Rated DMX cables
• IP Rated EtherCon Cables
• UPLOAD 03 software uploader
